Product Specifications

Design benefits

directional control

Steering control: 66° head angle, short stem, low chainset, dropper seat post

shock absorption

ROCKSHOX JUDY Silver 130 mm fork

braking power

Shimano MT200 180/160 mm brakes

grip

HUTCHINSON TORO tyres: 27.5 x 2.25 in size S and M, and 29 x 2.10 in L and XL

Design details

Weight

S: 13 kgM: 13,1 kgL: 13,3 kgXL: 13.5 kg

Frame

Composition: 6061 and 6013 triple-butted aluminium148 mm x 12 mm BOOST rear axleBolt through axlePress-fit 92 bottom bracketInternal dropper postSeat tube diameter: 31.6 mmBottle cage mount: 1

Drivetrain

Shimano DEORE30 T single chainring (compatible with 32 and 34 T)PROWHEEL crank: 170 mm 11-speed rear derailleur11-51 cassetteShimano 11-speed chain

Suspension

HardtailRockShox Judy Silver forkTravel: 130 mmBolt through axle15 x 110 mm BOOST formatTurnkey lockout on the fork

Wheels

SUN RINGLE wheelsDuroc 30 in 29" | 26 mm inner width for L & XL frames Duroc 30 in 27.5"| 26 mm inner width for S & M frames32 round spokes 6-bolt disc mountingHD freehub Sealed bearings BOOST axles: 15 mm front and 12 mm rear Tubeless Ready and equipped with rim tape

Brakes

Hydraulic disc brakesShimano MT 200Number of pistons: 2Front disc: 180 mmRear disc: 160 mm6-bolt mounting

Riding position

Rockrider Comp Flat handlebarMaterial: aluminiumWeight: 345 gDiameter: 31.8 mmWidth: 760 mmRise: 25 mmUpsweep: 6°Backsweep: 9°Rockrider stemMaterial: AluminiumAngle: 0°Sizes: 35 mmGrips:Rockrider 900 Lock On

Saddle / Seat post

Rockrider Ergofit saddleWeight: 260 gDropper seat post:Travel: 150 mm (L / XL), 120 mm (S / M)Weight: 650 g

Tyres

Hutchinson Toro27.5" x 2.25" in sizes S & M29" x 2.10" in sizes L & XLCarcass: 66 TPINot tubeless compatible

Pedals

Rockrider 520 Grip resin flat pedals

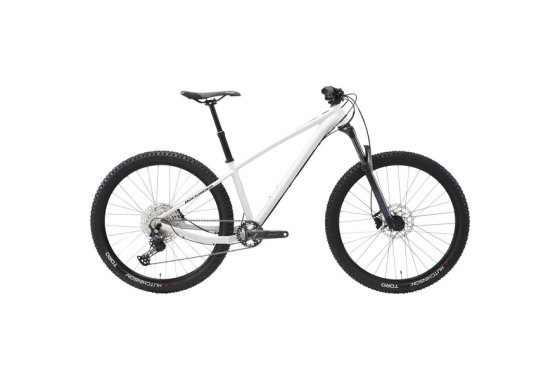

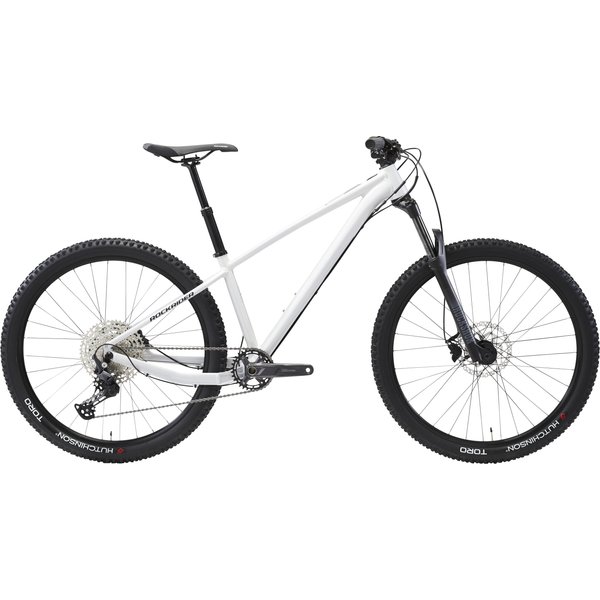

MOUNTAIN BIKE ROCKRIDER AM 100 HARDTAIL - white
