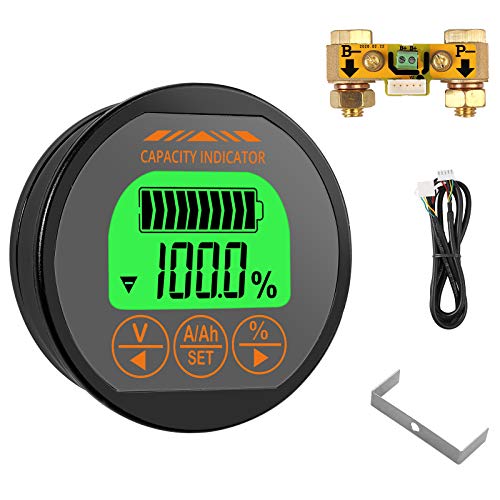

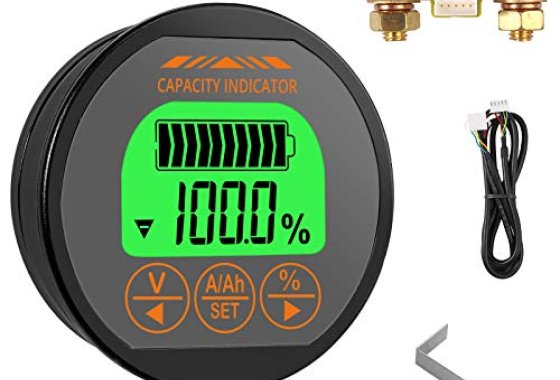

CAMWAY Battery Monitor 8-100V 0-350A Voltmeter Ammeter Voltage Current Meter Backlight

The Battery Tester Voltage range 8.0- 120V, can test any kind of battery within 500A. Apply for mobile and portable equipments, e-bike, balance cars, Vacuum Cleaner ,dry battery, lithium battery, lead-acid battery, lithium iron phosphate battery, nickel hydrogen battery,etc

Product Features:

• Allinone Battery MonitorTest The State of Charge The remaining battery capacity up to 999AH Charge and discharge current A Voltage VThese information leads to more efficient use of the battery which can enhance battery life and reduce the risk of failure
• Highdefinition Backlight DisplayClear display of various parameters at a glance twoway detection and display functionWhen the current is less than 50ma it will automatically enter the sleep mode and it will light up by pressing the button
• Various UsetageThe Battery Tester Voltage range 8 100V can test any kind of battery within 350A Apply for mobile and portable equipments ebike balance cars Vacuum Cleaner etc
• Data Storage Designed to automatically store the last testing data when system shuts off
• Slitlytouch ButtonHumanized DesignSlitlytouch the button to activate the backlight and switch the display of other parameters

Product Specifications:

• Working voltage:8.0-120V
• Current range: 0~+500 amps?Please Note: The sampler included is suitable for current 0-500A, but 500A has a large amount of heat, so ventilation and heat dissipation are required.
• Generally, 0-350A is recommended)
• Capacity range: 0-999 ampere-hour
• Working consumption: 10.0-12.0 mA
• Standby consumption: 0.5-0.6 mA
• Sleep consumption: 50-60 uA
• Voltage accuracy: ± 1.0 %
• Current accuracy: ± 1.0 %
• Capacity accuracy: ± 1.0 %
• Preset capacity value: 0.1-999 Ah
• Temperature range: 0-35?
• Weight: 400g
• Size: ø59mm*20 mm
• Mounting hole: diameter 54mm
• 1 x Battery monitor
• 1 x Current sampler
• 1 x 1 meters long cable
• 1 x English operation manual
